Price: $48500
Inventory :1

Production years: 2020

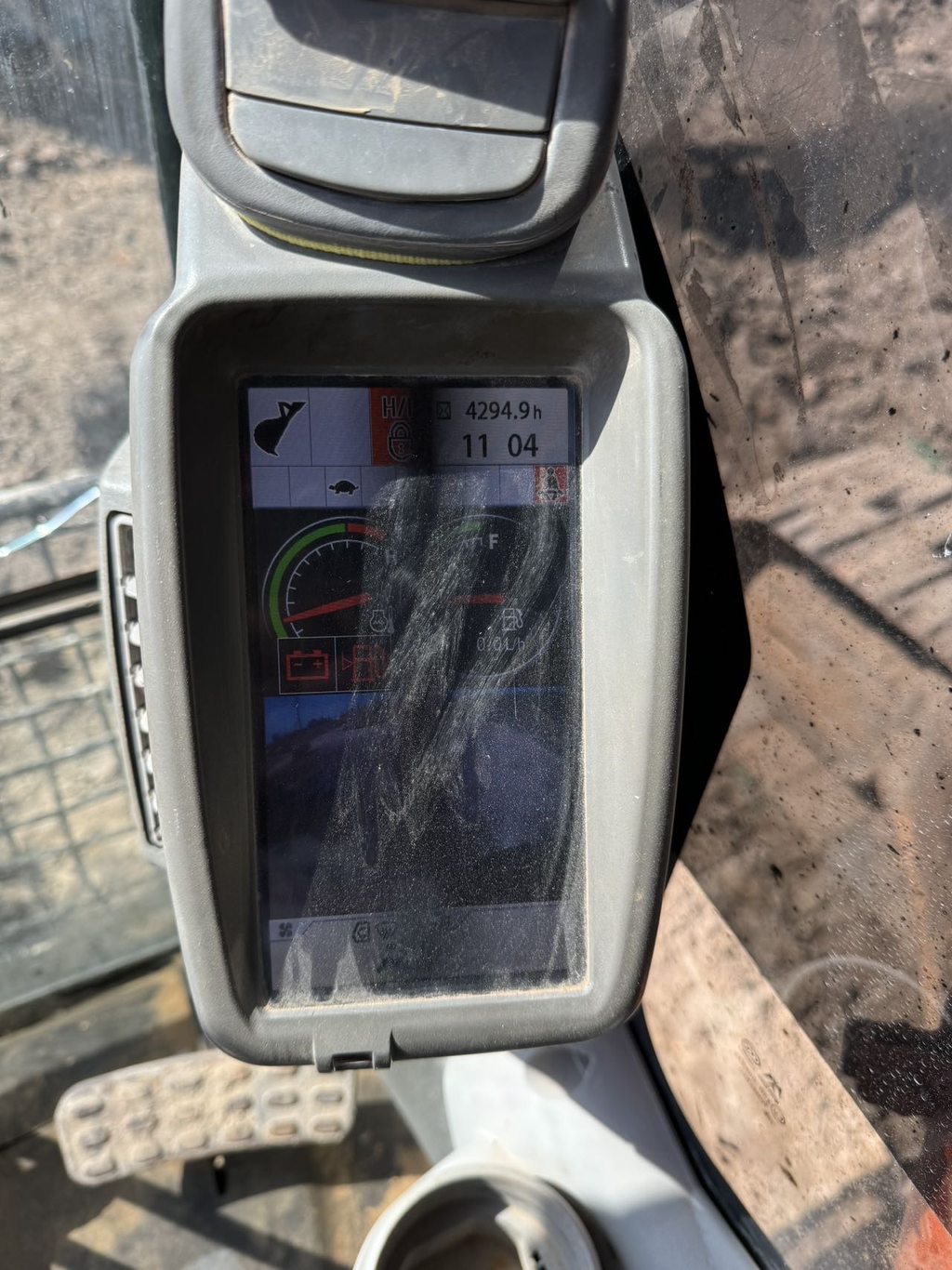

Working hours: ≥ 4290hours
Brand: HITACHI

Tel: 17857550880

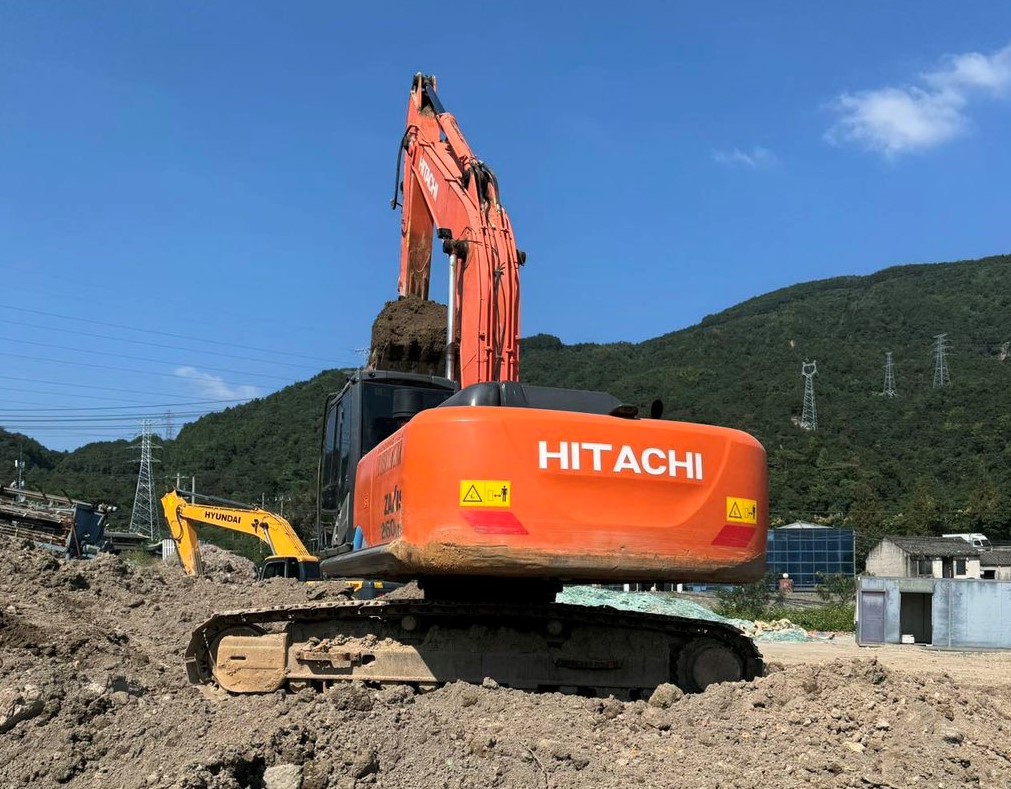

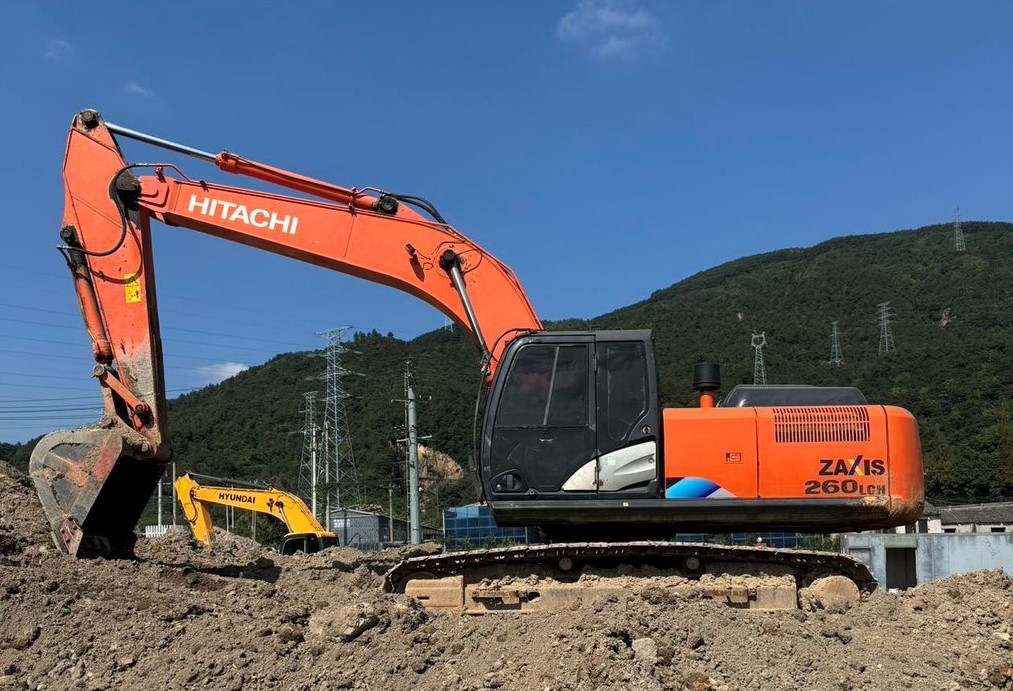

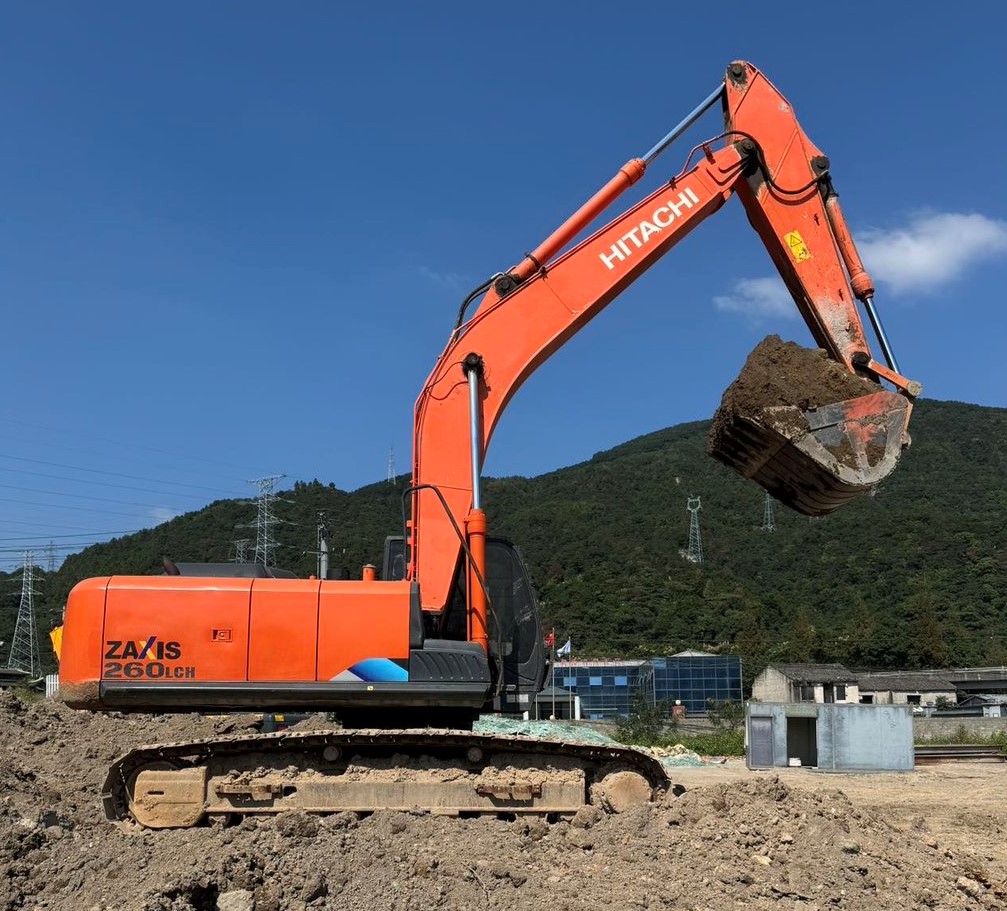

Hitachi 260-5a parameters

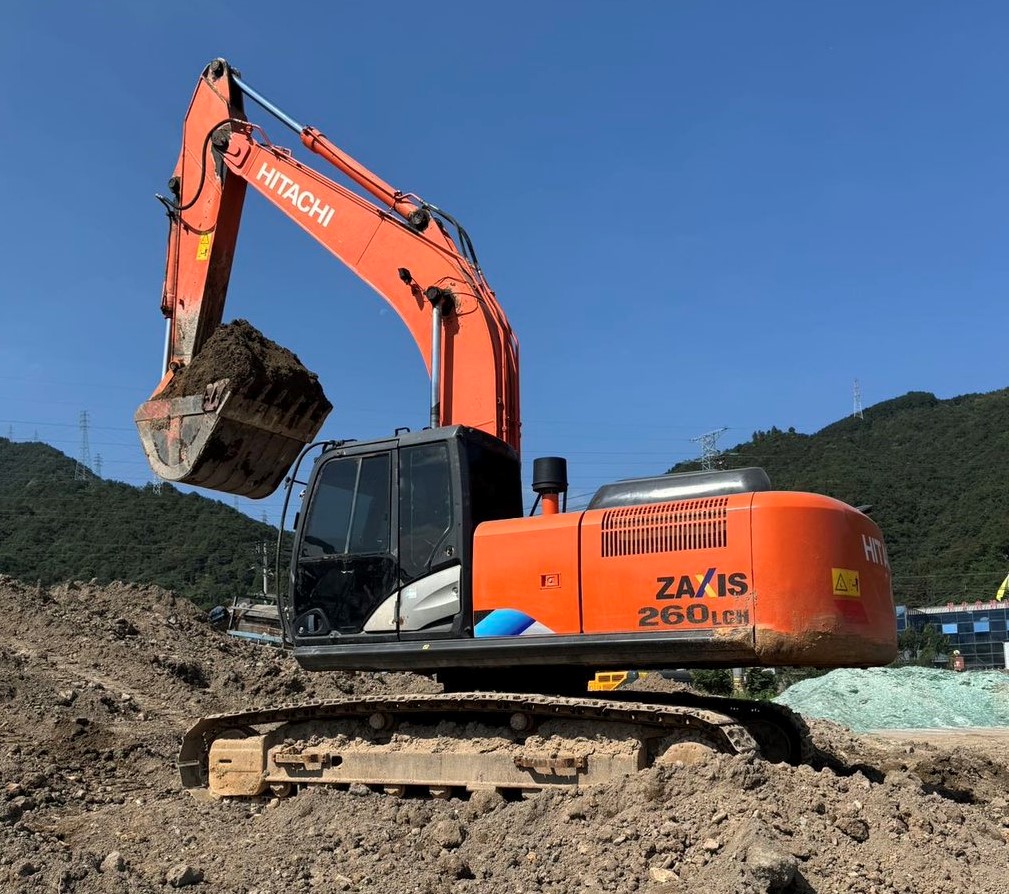

‌ The parameters of Hitachi ZX260LCH-5A medium-sized excavator are as follows: ‌ :

‌ Basic parameters ‌ :

‌ Model ‌ : ZX260LCH-5A
‌ Factory life ‌ : 2020
‌ Working weight ‌ : 26,000 kg
‌ Bucket capacity ‌ : 1.3m ³

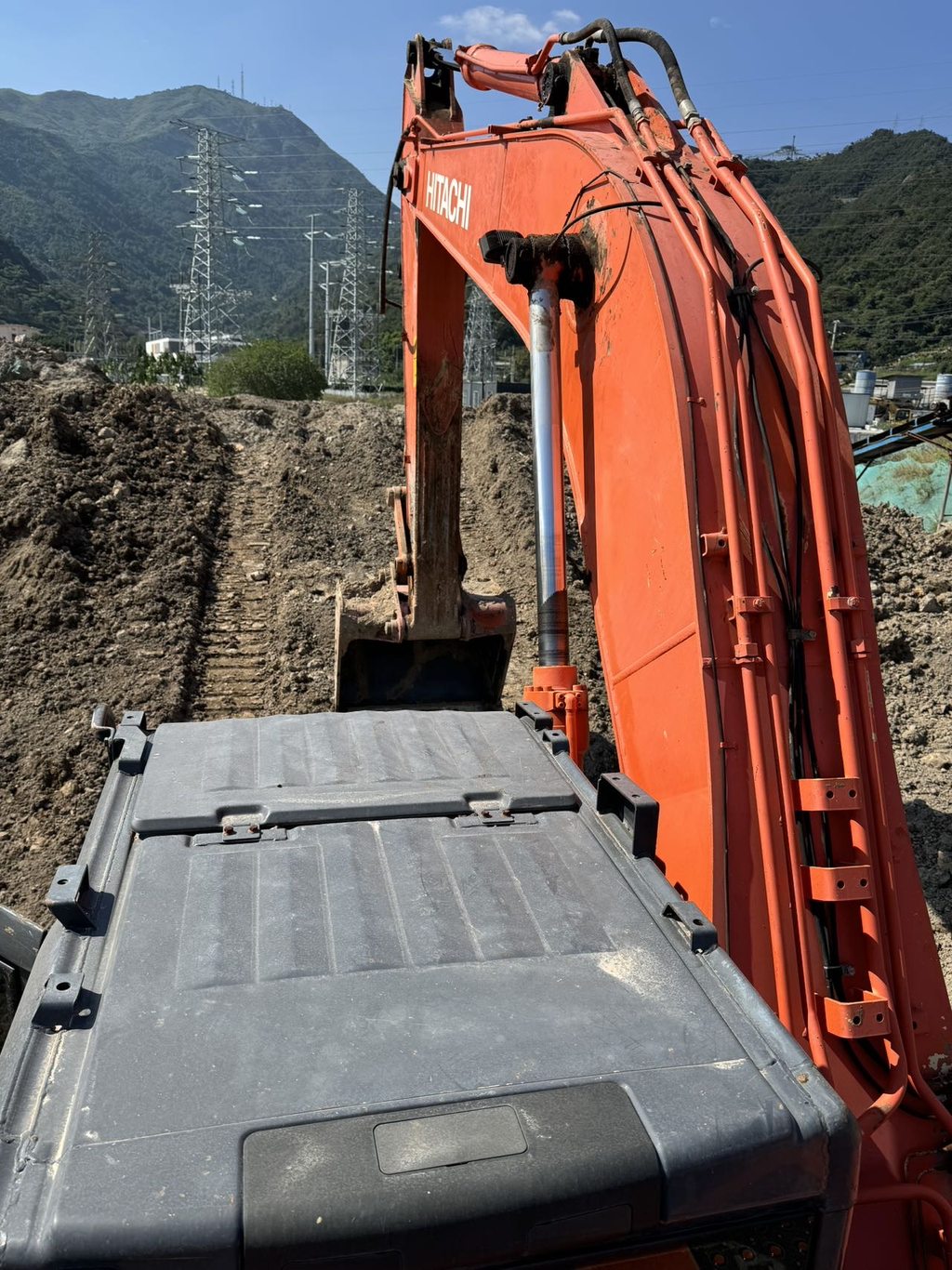

‌ boom length ‌ : 6,000 mm
‌ bucket rod length ‌ : 2,960 mm
‌ Power type ‌ : traditional power

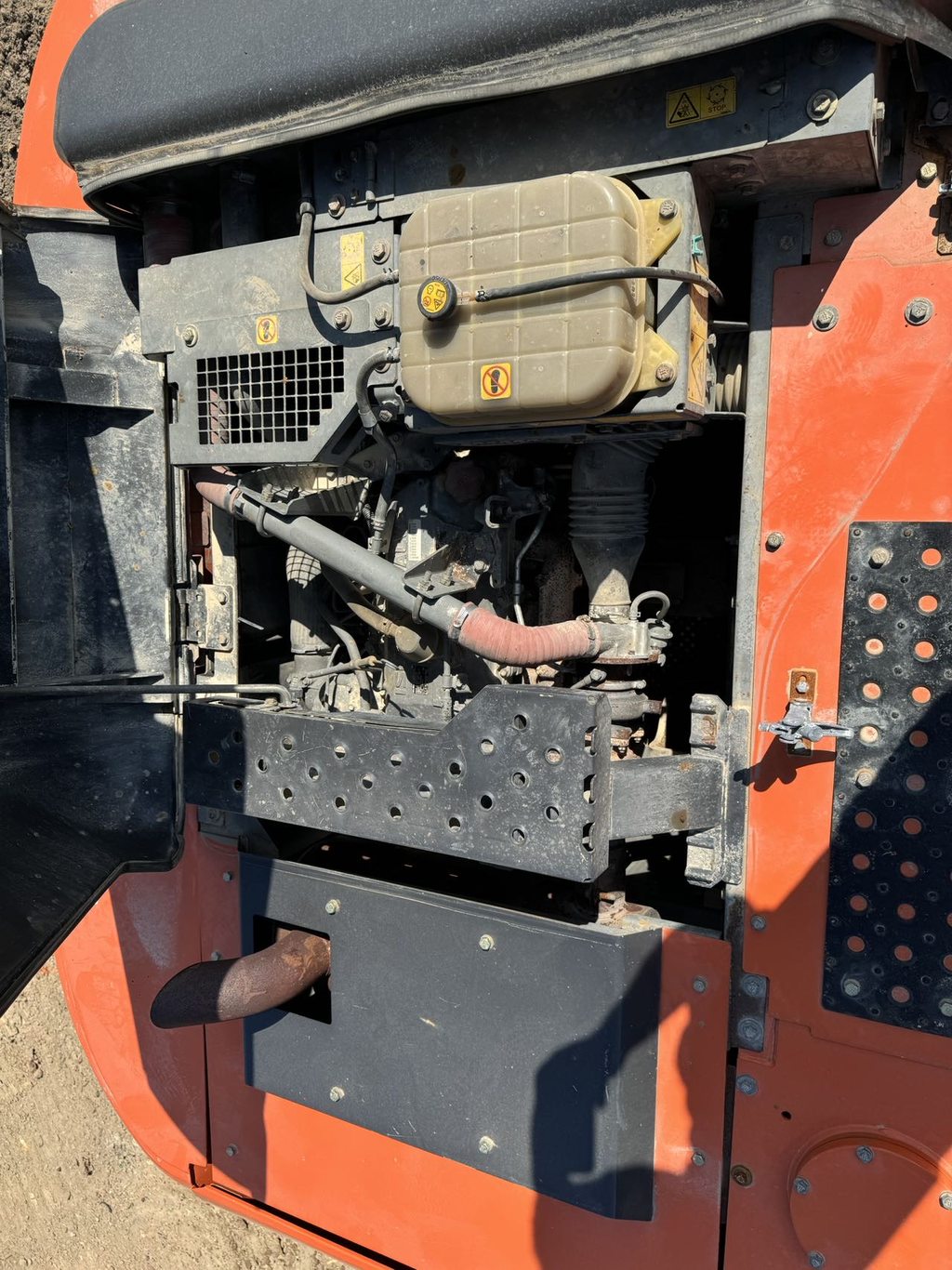

‌ Engine model ‌ : Isuzu 4HK1XKSA-01
‌ Power rating ‌ : 127 kW (173 PS) at 2,000 rpm‌12
‌ Performance parameters ‌ :

‌ ground specific pressure ‌ : 52 kPa
‌ rotation speed ‌ : 12.4rpm
‌ Climbing ability ‌ : 70%
‌ bucket digging force ‌ : 188 kN
‌ bucket rod digging force ‌ : 131 kN
‌ Maximum tractive force ‌ : 222 kN
‌ Travel speed ‌ : high speed 5.5km /h, low speed 3.4km /h‌12
‌ hydraulic system ‌ :

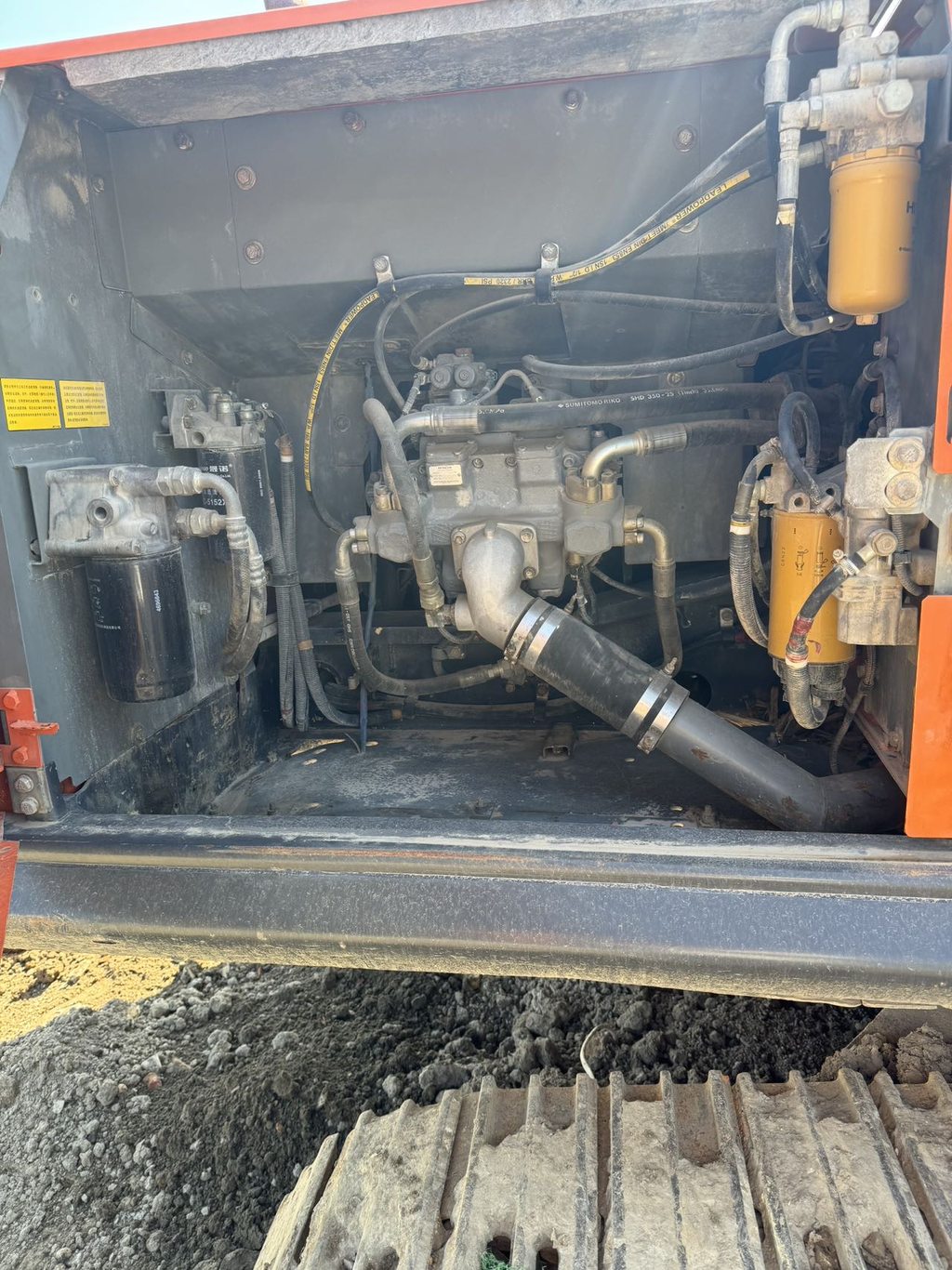

‌ Main pump type ‌ : 2 variable axial piston pumps
‌ Maximum flow rate of main pump ‌ : 2 × 224 l/min
‌ travelling hydraulic circuit pressure ‌ : 34.8MPa
‌ rotary hydraulic circuit pressure ‌ : 32.4MPa
‌ hydraulic circuit pressure ‌ : 34.3MPa
‌ pilot oil circuit pressure ‌ : 3.9MPa ‌23
‌ Oil capacity ‌ :

‌ Fuel tank capacity ‌ : 510 L
‌ hydraulic oil tank capacity ‌ : 156L
‌ Engine oil change volume ‌ : 23 L
‌ coolant capacity ‌ : 31 L
‌ hydraulic system capacity ‌ : 280 L‌23
‌ Body size ‌ :

‌ Total length of transportation ‌ : 10,360 mm
‌ Total transportation width ‌ : 3,190 mm
‌ Total transport height ‌ : 3,080 mm
‌ Full cab height ‌ : 3,010 mm
‌ counterweight ground clearance ‌ : 1,080 mm
‌ Minimum ground clearance ‌ : 460 mm‌23
