Price: $95000

Inventory :1
Production period: 2021

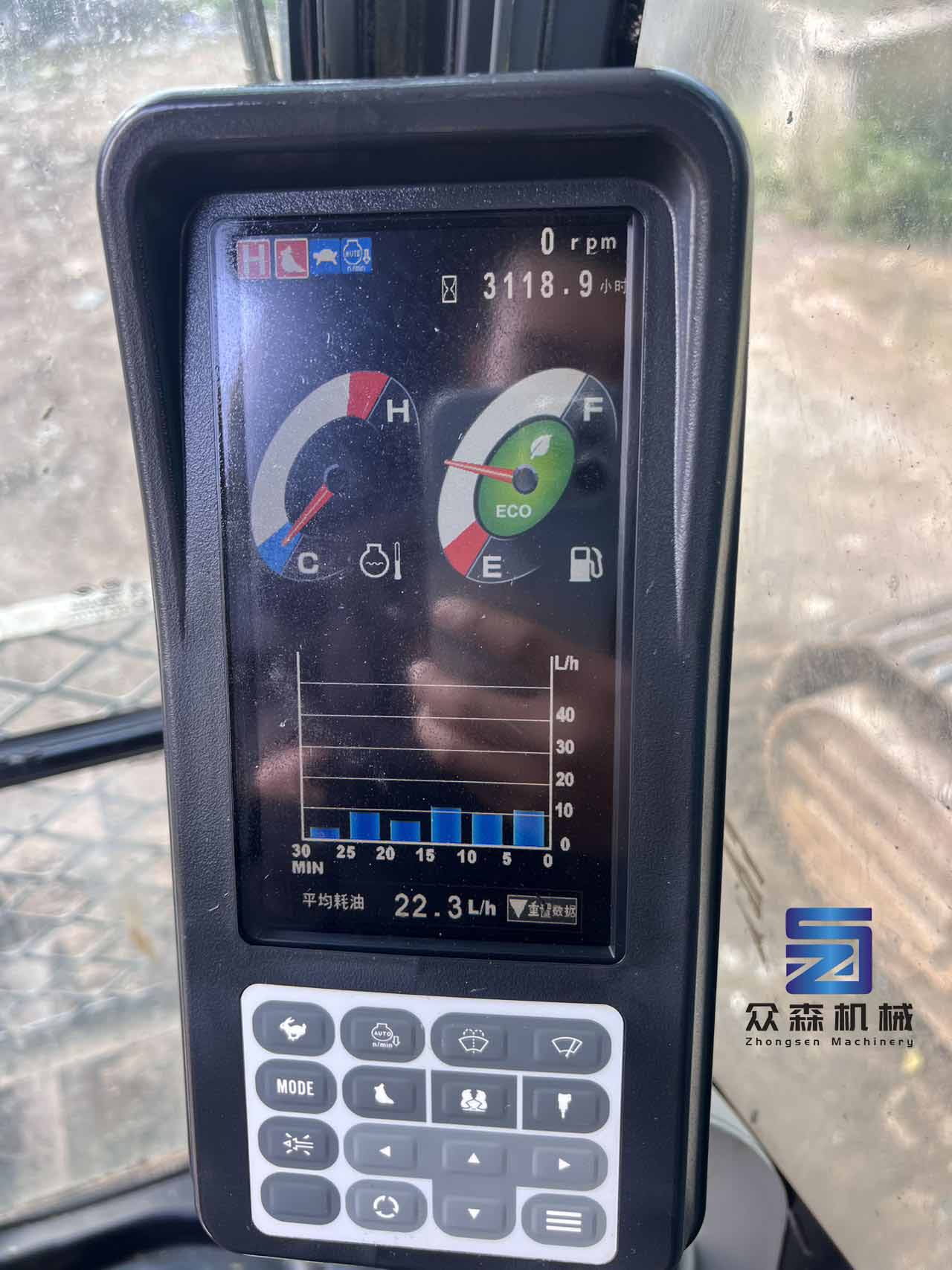

Working hours: ≥ 3118 hours
Brand: KOBELCO

Tel: 17857550880

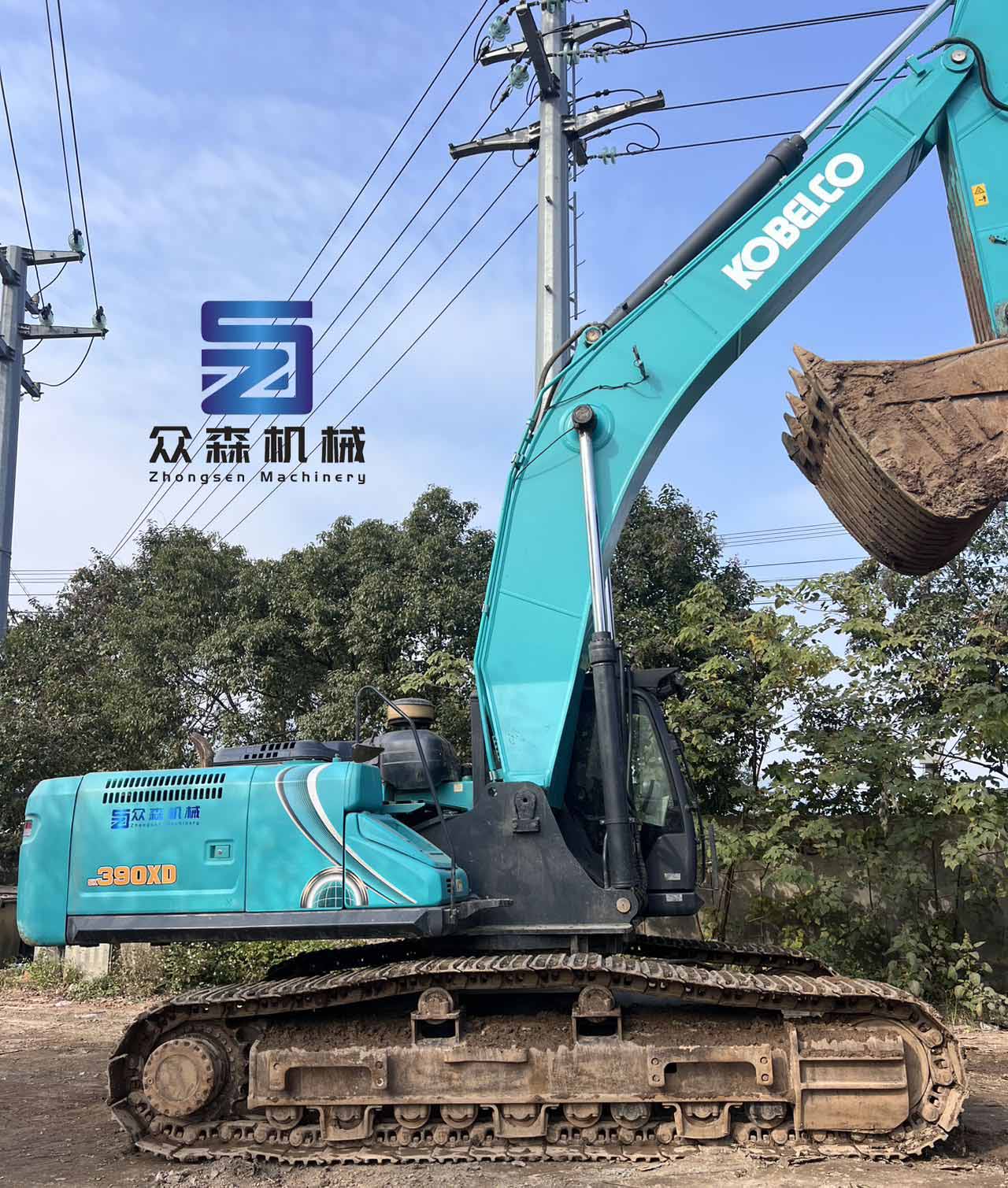

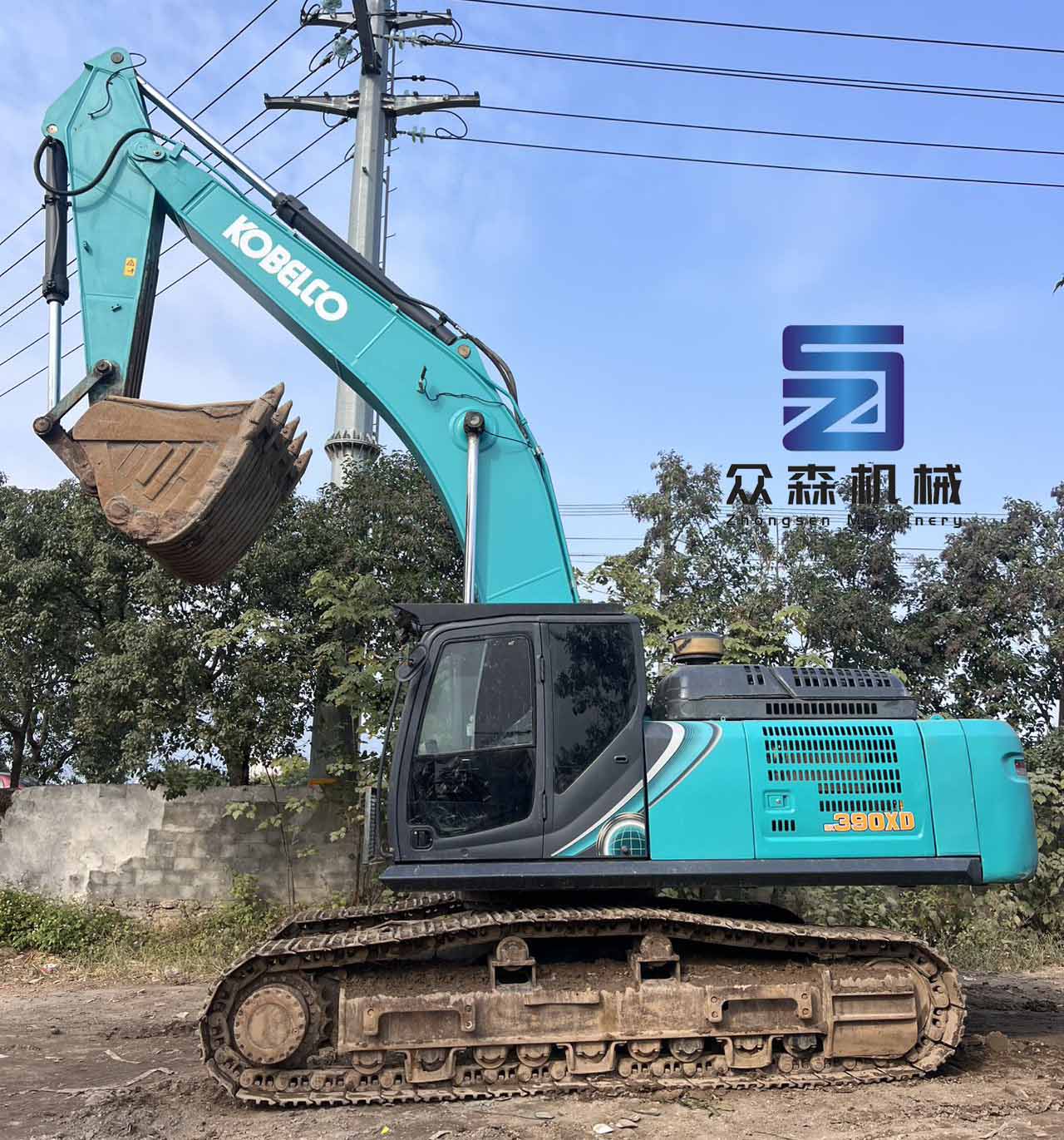

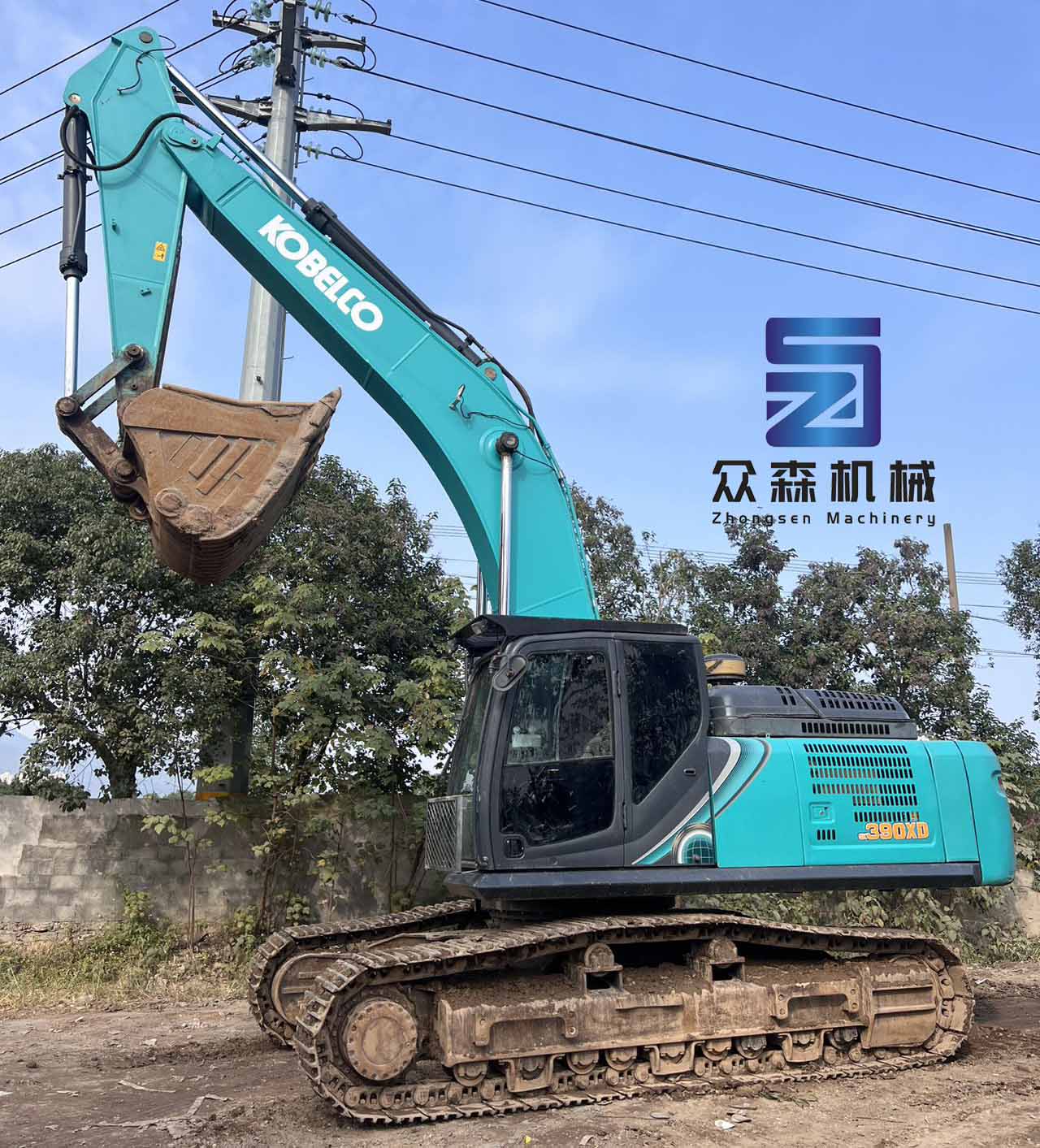

‌ The main parameters of Kobelco SK390XD-10 excavator are as follows: ‌ :

‌ Basic parameters ‌ :

‌ Device model ‌ : SK390XD-10
‌ model for short ‌ : 390
‌ tonnage range ‌ : large excavation (30-50 tons)

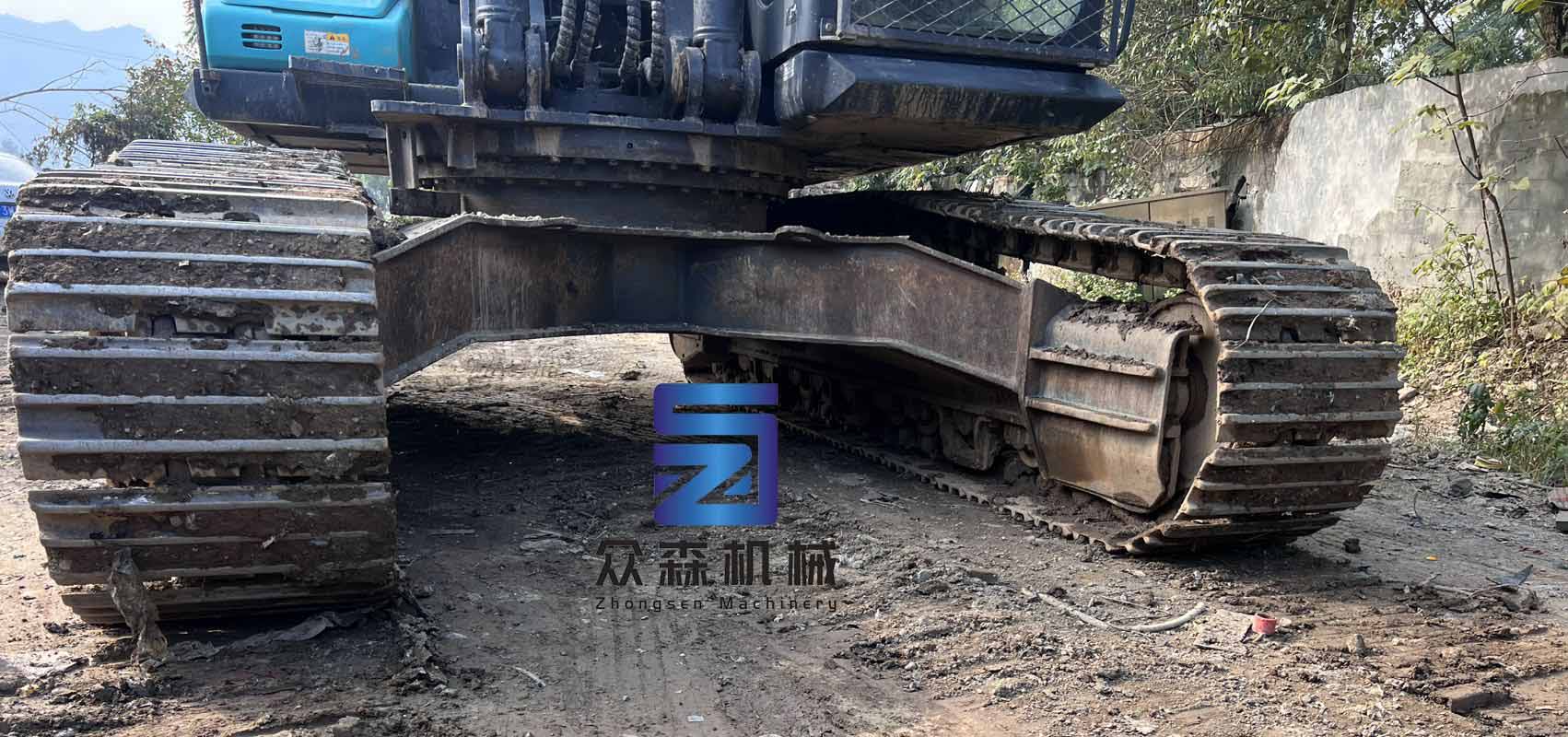

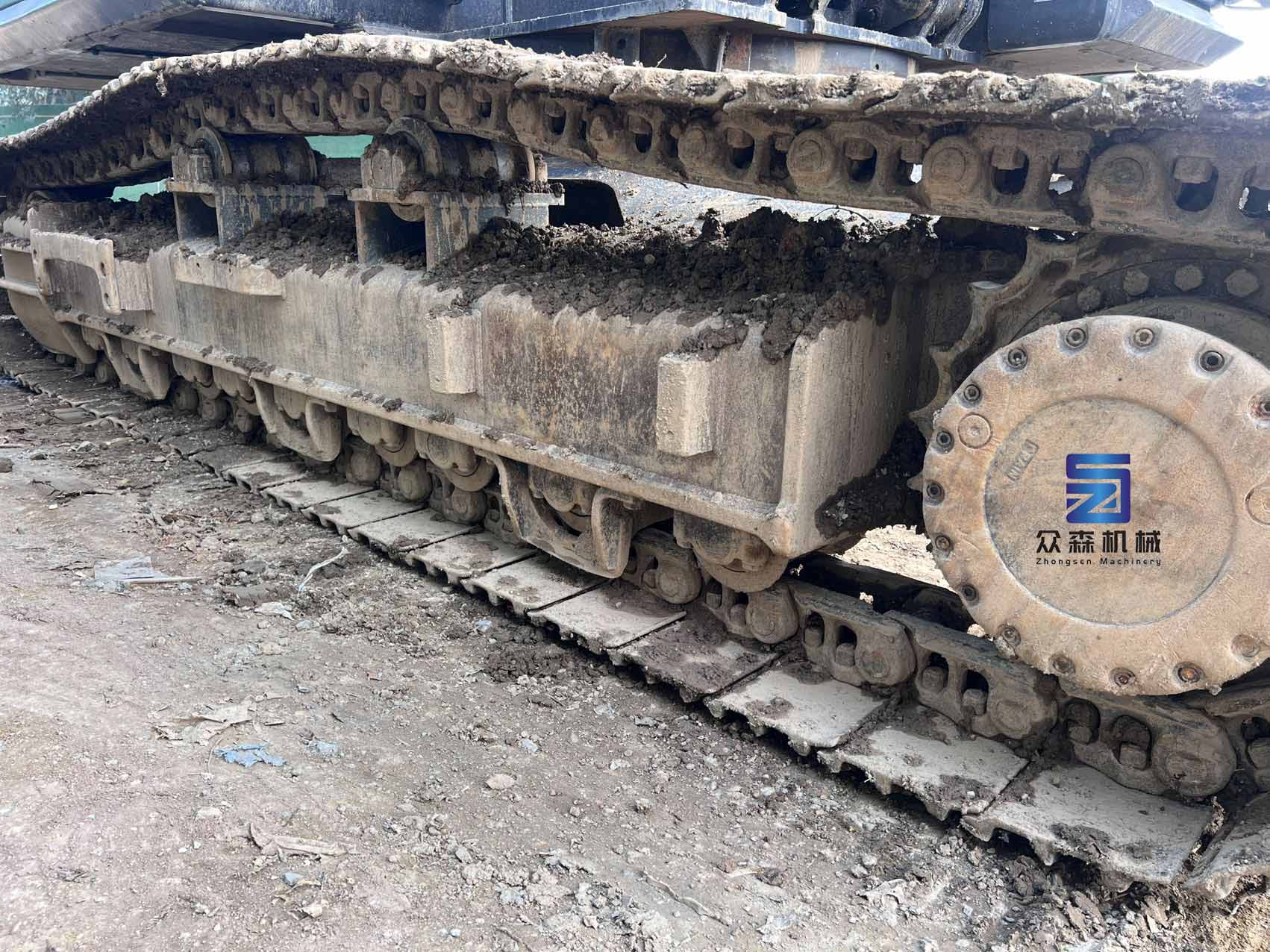

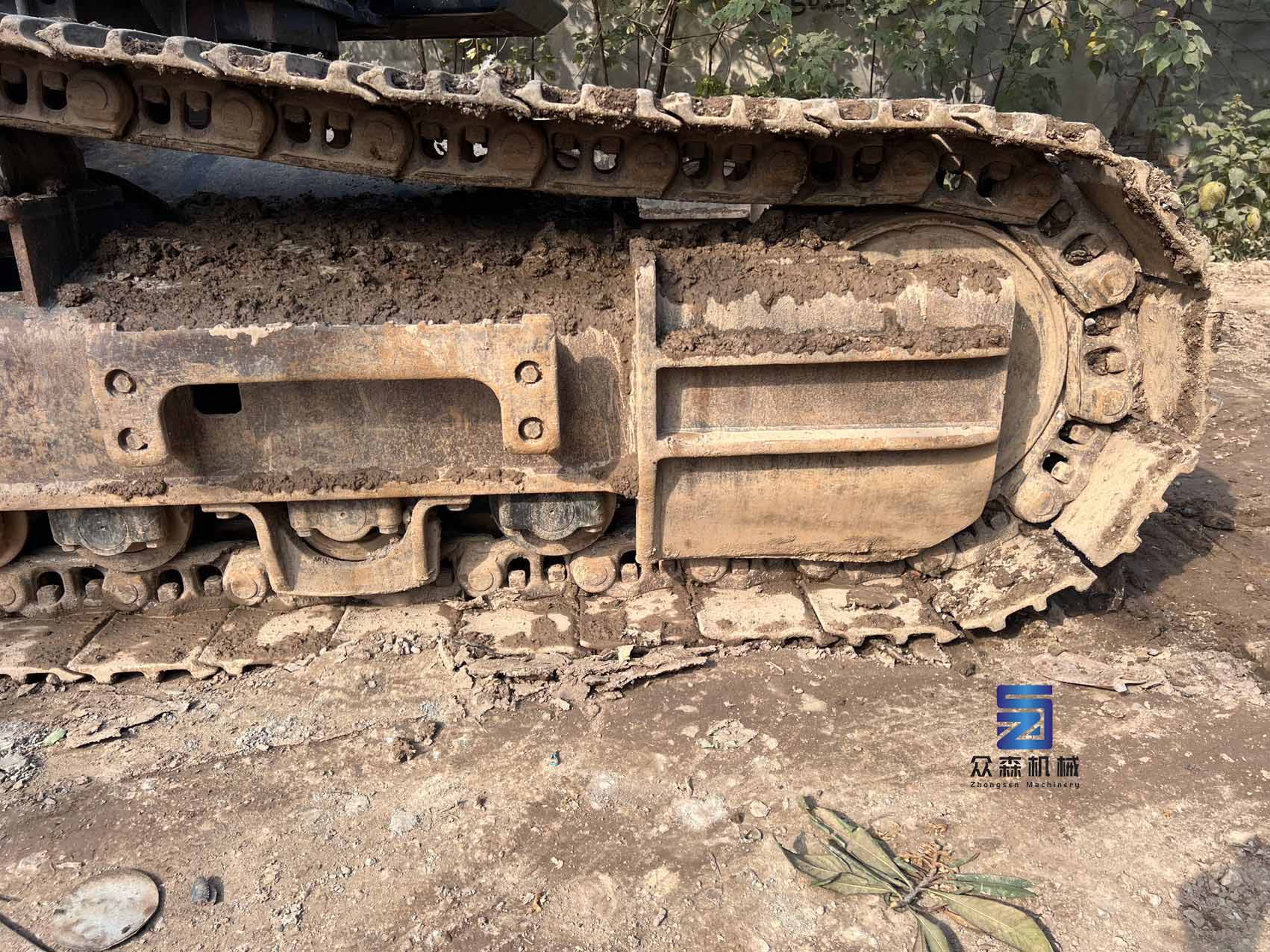

‌ Walking mode ‌ : crawler type
‌ bucket type ‌ : backhoe
‌ working condition application ‌ : mine type
‌ Power type ‌ : fuel ‌1

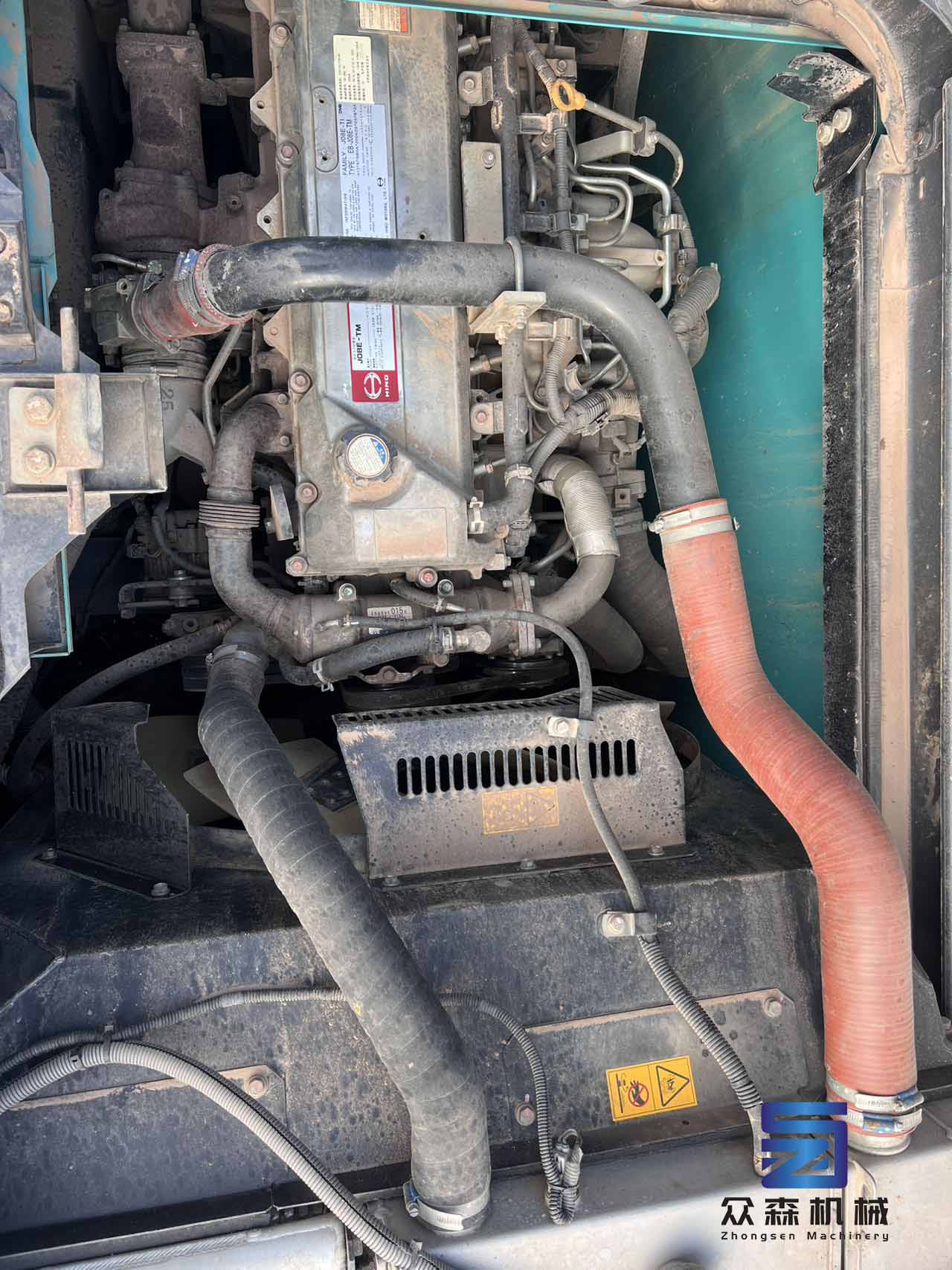

‌ Engine parameters ‌ :

‌ Engine model ‌ : J08ETM-KSDL
‌ Model ‌ : direct injection, water-cooled, four-stroke, turbocharged, built-in intercooled
‌ engine brand ‌ : Hino
‌ Rated power ‌ : 209kW/2100rpm
‌ Maximum torque ‌ : 998N·m/1600rpm‌23
‌ Performance parameters ‌ :

‌ Working weight ‌ : 38800kg
‌ bucket capacity ‌ : 2.0m³
‌ Travel speed ‌ : 5.6km/h (high) / 3.3km/h (low)
‌ rotation speed ‌ : 10rpm
‌ ground specific pressure ‌ : 73Kpa
‌ Climbing ability ‌ : 70%
‌ bucket digging force ‌ : 224kN
‌ bucket rod digging force ‌ : 201kN
‌ maximum tractive force ‌ : 331kN‌12

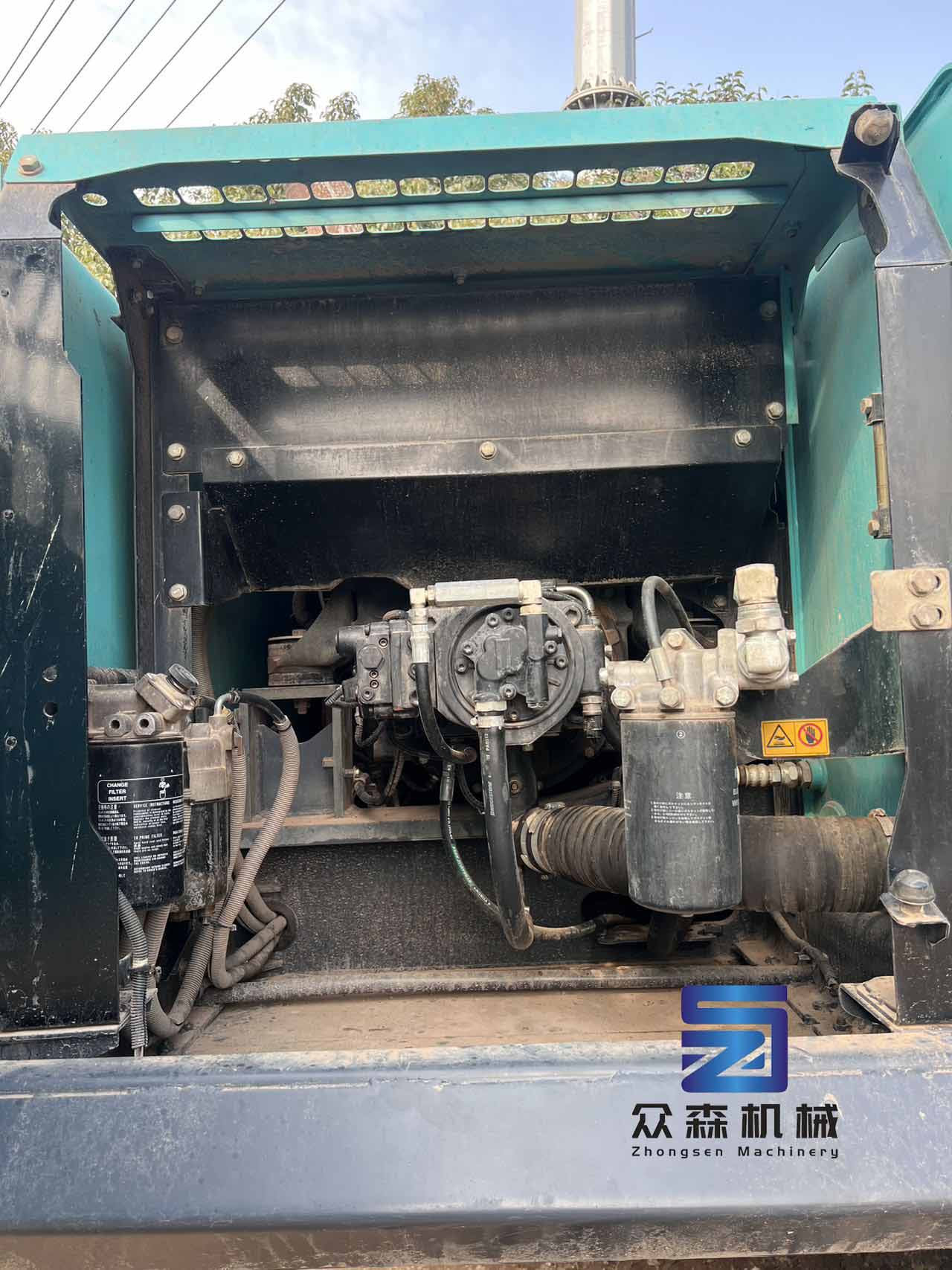

‌ hydraulic system ‌ :

‌ Main pump type ‌ : double variable displacement axial piston pump + pilot gear pump
‌ Fuel tank capacity ‌ : 503L
‌ hydraulic oil tank capacity ‌ : 245L
‌ Total capacity of hydraulic system ‌ : 410L‌23
‌ Body size ‌ :

‌ Total transportation length ‌ : 11440mm
‌ Total transportation width ‌ : 3190mm
‌ Total transportation height ‌ : 3860mm
‌ track plate width ‌ : 600mm
‌ Minimum turning radius of the front working device ‌ : 4480mm‌23
‌ Scope of work ‌ :

‌ Maximum excavation radius ‌ : 10890mm
‌ Maximum mining radius of the stopping surface ‌ : 10690mm
‌ Maximum digging depth ‌ : 7150mm
‌ Maximum excavation height ‌ : 10370mm
‌ Maximum unloading height ‌ : 7190mm
‌ The maximum vertical digging depth ‌ : 5820mm‌23
